THS/PH21ET

High sensitivity metal detector

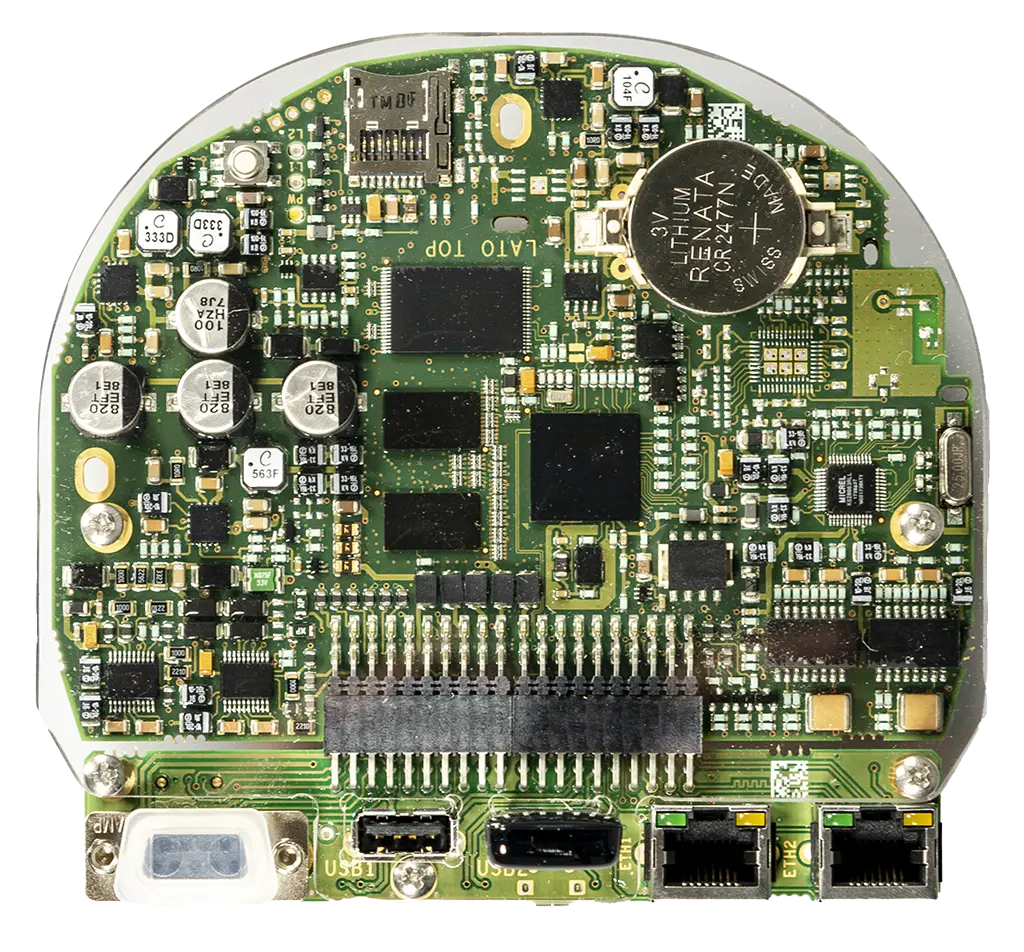

The THS/PH21ET is the essential and cost-effective solution within the 21 series, providing high sensitivity for the detection of all metals, including stainless steel contaminants. Built from robust AISI 316L stainless steel, it guarantees long-term reliability in an agile and compact design. The system manages up to 250 product profiles and logs 100,000 events via the IXC card, easily accessible through an alphanumeric display and a 4-key interface. It features integrated AUTOTEST and AUTO-QC functions for operational safety, with optional UL/CSA compliance. All product-contact parts are designed for tool-free disassembly, ensuring quick and easy cleaning procedures.

Request For Information

Key Points

High sensitivity to all magnetic and non-magnetic metals, including stainless steel

AISI 316L stainless steel construction

Control Power Box available according to UL 508A and CSA-C22.2 No. 286

250 product profiles, selectable by local programming or network software

1,000 storable events

4 x 20 character OLED alphanumeric display

Local programming: 4 stainless steel keys, 3 with double function

AUTOTEST functionAUTO-QC function

Detection Effectiveness and Digital Analysis

The THS/PH21ET offers high detection sensitivity for magnetic, non-magnetic, and stainless steel metals. Based on fully digital signal analysis, the system ensures that detection is totally independent of environmental electromechanical vibrations, ensuring absolute repeatability of results. For multiple installations, the device can be set to 4 different transmission channels (TX) to avoid mutual interference.

Specialized Configurations: DT (Dust Tight) and WIP (Wash In Place)

To meet different product handling needs, the system is available in dedicated variants. The DT (Dust Tight) configuration features a fully sealed, dust-tight transit tunnel and ejection system, effectively preventing product dispersion into the environment. The WIP (Wash In Place) version, on the other hand, is equipped with water injection nozzles that allow residues to be removed from parts in contact with the product at the end of the batch; in this version, the tunnel and ejection system are totally sealed for safe operation.

Construction Standards and Maintenance

Made of AISI 316L stainless steel with a mirror finish, the device complies with 21 CFR Parts 210 and 211 regulations. All parts in contact with the product are made of AISI 316L and PETG, materials chosen for maximum hygiene. The design allows for the disassembly and cleaning of internal components quickly and without the use of tools, optimizing machine downtime.

Process Safety and Quality Control

Operational safety is guaranteed by AUTOTEST, AUTO-QC functions, and Fail Safe mode. A double confirmation system constantly monitors the opening and closing of the EO/EC ejection flaps, with programmable actuation force to adapt to different product types. The Control Power Box is certified according to UL 508A and CSA-C22.2 No. 14-05 standards, with a 90-253 VAC universal power supply.

Interface, Traceability, and Connectivity

The system features a high-contrast OLED display and a stainless steel keyboard, supporting up to 40 operators and 250 product profiles. In compliance with FDA 21 CFR Part 11, it manages electronic records and digital signatures. Connectivity includes RS-232, integrated Bluetooth, and Ethernet or Wi-Fi options for seamless integration into corporate digital systems.

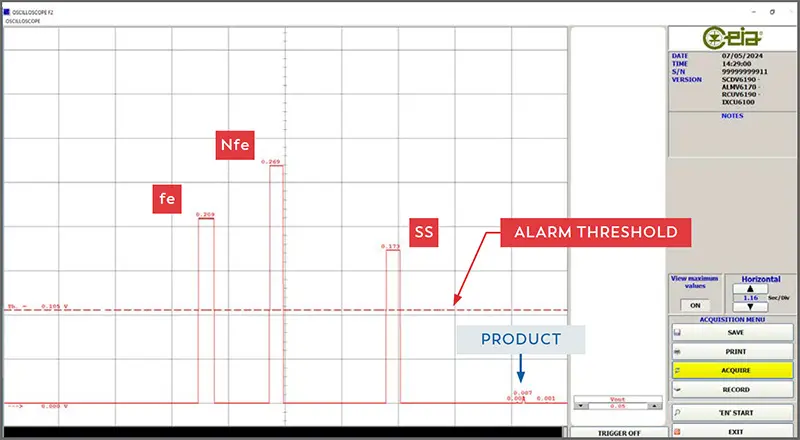

MD-SCOPE

Software diagnostic tool. Allows remote programming, signal analysis and oscilloscope functionalities.

Part Code: #MD-SCOPE2

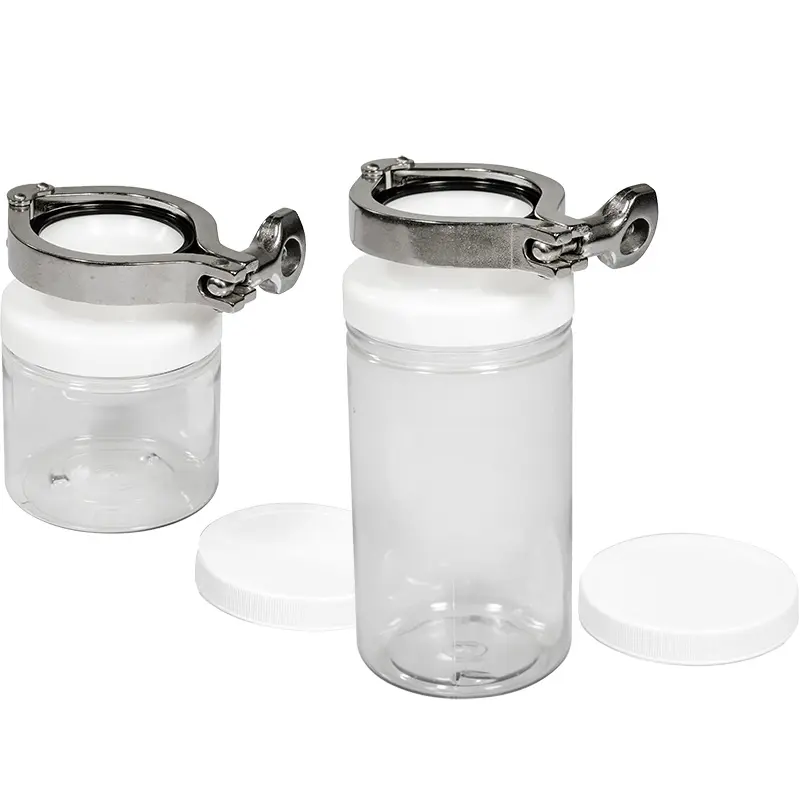

Rejected Product Containers

500 ml - STANDARD
950 ml - STANDARD

Rejected Product Containers

500 ml - TRICLAMP/DT/WIP
950 ml - TRICLAMP/DT/WIP

Technical Manual

Detailed electronic document(S) package includes: Installation, Operator and Programming Manuals.

Part Code: #45669

Technical Manual (Digital)

Detailed electronic documents downloadable via link provided by CEIA SpA.

Part Code: #90674

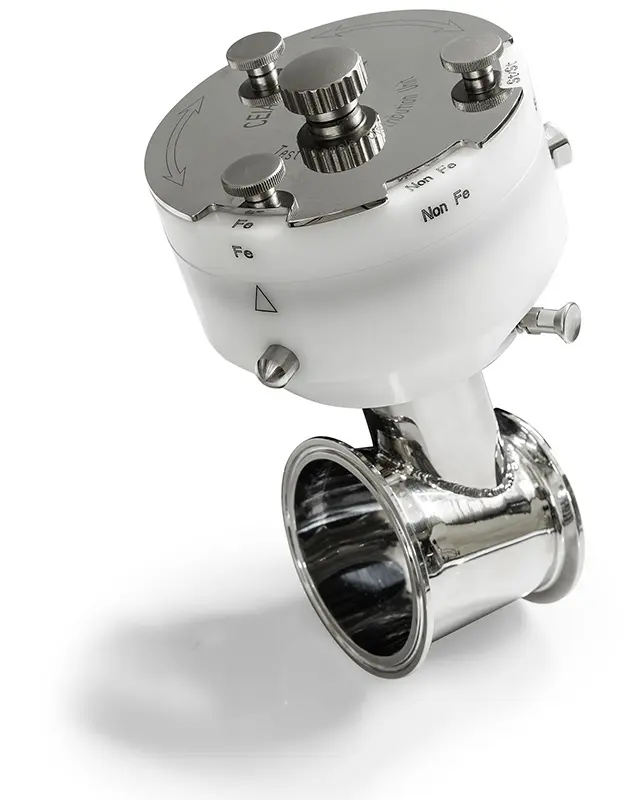

Test Samples

Fe
Non Fe
AISI 316

THS Production

Requires installation of IXC option. Software for the data management.

Part Code: #33908

Validation Manual (Digital Document)

Detailed electronic document downloadable via link for validation of detector.

Part Code: #90672 - #90673

Periodic Maintenance Kit

Kit includes:

One (1) lift flap bearing support
One (1) Infeed Conveyor
One (1) Intermediate Conveyor

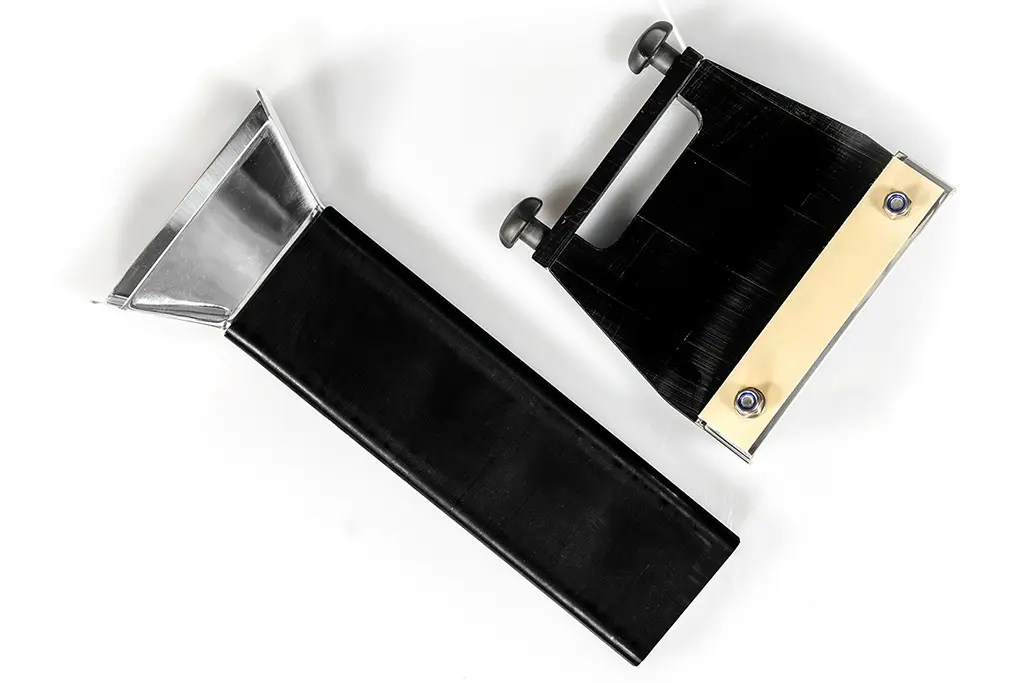

Antistatic infeed conveyor kit

Eliminates electrostatic charges during the product’s passage. Particularly efficient in case of tablets and capsules’ inspection.

Part Code: 90x25 #60214 100x40 #64270

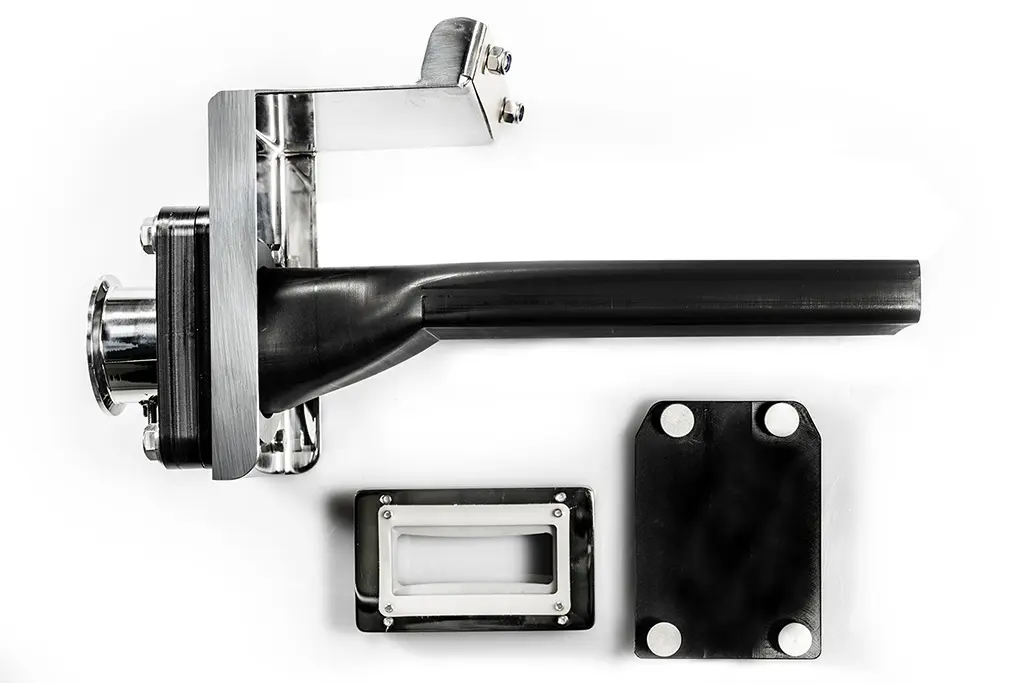

Antistatic infeed conveyor kit for (DT) version

Dust Tight Infeed conveyor eliminates electrostatic charges during the product’s passage. Particularly efficient in case of tablets and capsules’ inspection.

Part Code: 100x40 #68105
